Cartridge-Free Printing — Now, That’s Brilliant by Design.

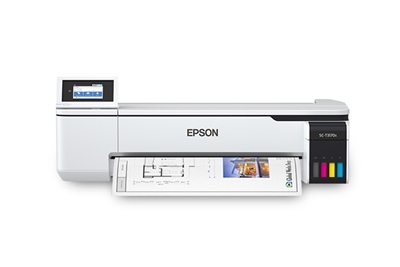

Engineered to enhance workflow, the SureColor T3170x 24" wide-format wireless printer offers fast, precise and reliable printing in a clean, space-saving design. Ideal for low-cost POP and education posters, as well as blueprints and line drawings up to 24", the SureColor T3170x produces accurate, A1/D-size prints in 34 seconds1. New, easy-to-fill, refillable ink tanks eliminate time spent purchasing and changing ink cartridges. An Epson PrecisionCore® MicroTFP® printhead with Precision Droplet Control produces output with crisp lines and outstanding clarity. Whether printing from a roll or the Auto Sheet Feeder, the 4.3" color LCD touchscreen makes tasks simple and intuitive, and integrated wireless and Wi-Fi Direct® connectivity allows users to easily print from virtually anywhere in the office using a tablet or smartphone.
Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.*
What's in the Box:
- 24" EPSON® SureColor T3170x Printer
- Full Set of Initial Epson t49H Ink Bottles (140 mL)
- Start Here Poster
- User Guide
- AC Power Cable
Note: Media is not included with the printer
Outstanding Image Quality — PrecisionCore MicroTFP printhead with Precision Droplet Control for outstanding clarity, plus commercial-grade reliability with Nozzle Verification Technology.
Versatile Media Handling — Accommodates rolls up to 24" wide and sheets up to 11" x 17" through the auto sheet feeder Precise, Sharp Details — Print posters, blueprints, line drawings and more up to 2400 dpi Cartridge-Free Printing — High capacity ink bottles with auto-stop for easy, mess-free filling Ultra-Fast Print Speeds — A1/D-size prints in as fast as 34 seconds. Compact, Clean Design — Easily fits on a desktop or on its own with an optional printer stand (Sold Separately) Easy to Operate — Large and intuitive 4.3" color LCD screen simplifies print tasks. Easy Setup — Get up and running out of the box in as quickly as 30 minutes
Ideal Applications

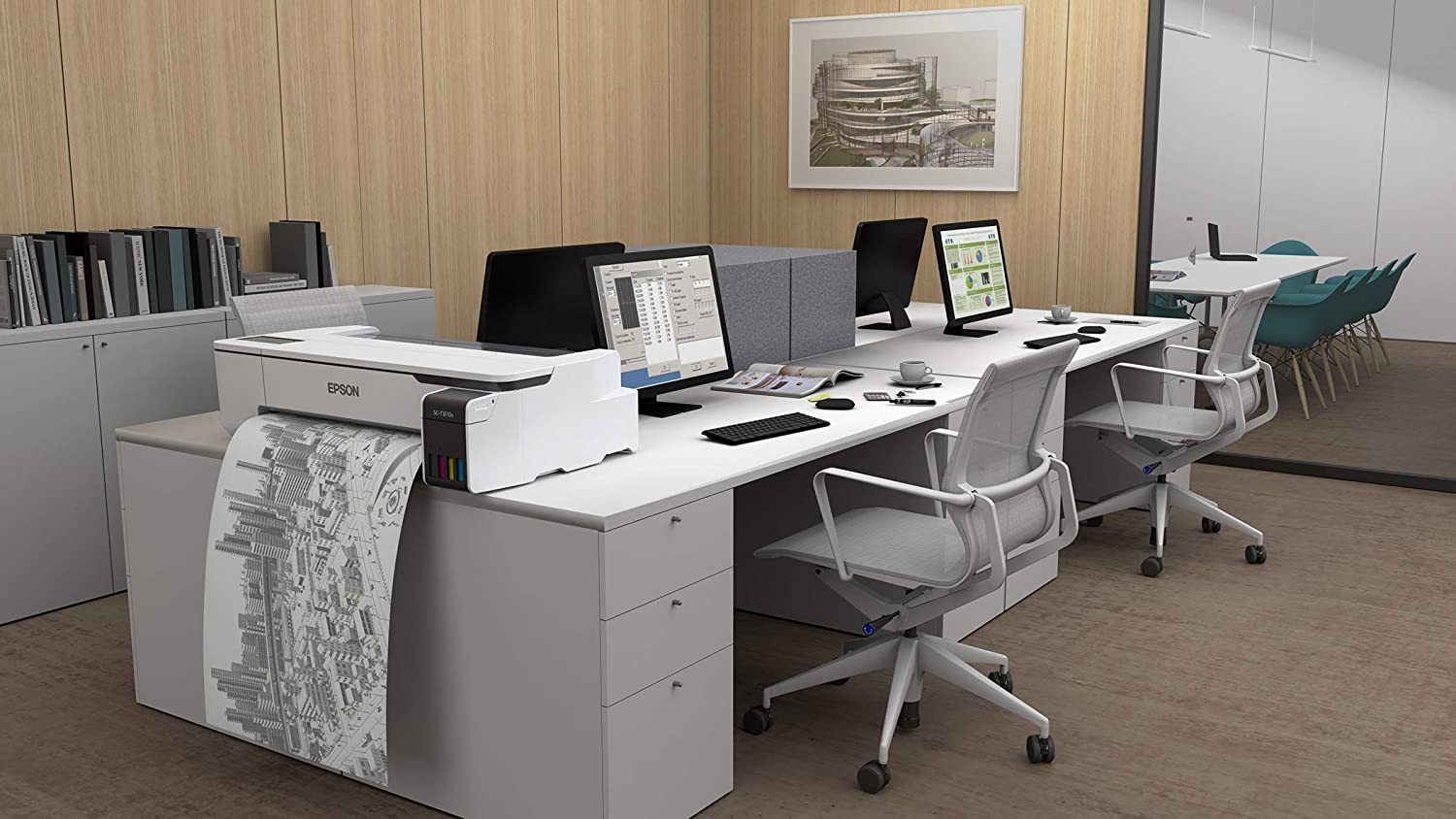

Application possibilities include the production of CAD and architectural applications.
PRINTPrinting Technology: PrecisionCore MicroTFP 4-channel
Ink Type: Epson T49H Ink Bottles; 4-color (C, M, Y, K)
Nozzle Configuration: Color and monochrome heads; 800 nozzles x 4 channels
Droplet Technology: Variable Droplet Technology
Maximum Resolution: 2400 x 1200 dpi
EPSON INK BOTTLES
In-box Bottle Fill Volume: C, M, Y, K: 140 mL x 2 bottles each
Retail Bottle Fill Volume: C, M, Y, K: 140 mL
Ink Bottle Shelf Life: 2 years from printed production date or 6 months after opened Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.
ROLL MEDIA HANDLING
Single Top-loading: Roll 24" wide
2" Core Diameter: User-adjustable roll media adapters
Roll Cutting: High-speed internal rotary cutter; auto or manual
Maximum Roll Diameter: Up to 4.3"
Media Thickness: Up to 8.6 mil
Roll Paper Remaining: The amount of remaining paper can be controlled from the control panel
SHEET MEDIA HANDLINGSingle Sheet, Top Loading: Up to 24" wide
Sheet Feeder: 11" x 17" Tabloid/A3
Minimum Sheet Size: (1 sheet and ASF) Letter/A4
PRINTABLE AREA AND ACCURACYMax. Paper Width: 24.4"
Left and Right Margins: 0 mm to 3 mm each (0.24" total)
Maximum Printable Length: Limited by application, OS and driver/RIP used
Minimum Paper Width Roll: 8.27"/Sheet: 8.27"
IINTERFACESUser Interface Display: 4.3" touchscreen
Printer Interfaces: SuperSpeed USB (compatible with USB 3.0 specification), Wireless LAN IEEE (802.11 b/g/n)6, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct®
OPERATING SYSTEMS SUPPORTED
macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP8
GENERAL
Weight and Dimensions (W x D x H) Without Stand: 38" x 20" x 9" (970 x 505 x 230 mm) 60 lb (27 kg)
With Stand: 38" x 28" x 36" (970 x 696 x 913 mm) 84 lb (38 kg)
Acoustic Noise Level: Operating: Approx. 50 dB(A) / Sleep: Approx. 32 dB(A)
Temperature Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C) / Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C) / Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)
Relative Humidity Operating: 20–80% (no condensation) / Operating (Recommended): 45–60% (no condensation) / Storage: 5–85% (no condensation)
Safety Standards UL (MET), FCC (Class A), CSA, CE, EMC
Electrical Requirements
Voltage: AC 110–240 V
Frequency: 50–60 Hz
Current: 1.4 A
Power Consumption
Printing: Approx. 22 W
Ready: Approx. 8 W
Sleep: Approx. 1.6 W
Power Off (Stand By): 0.2 W
Limited Warranty and Service: Standard 1-year unit exchange with toll-free phone support Monday through Friday
Country of Origin Indonesia
ECO FEATURES
ECO PASSPORT by OEKO-TEX® Certified (NEP 1903)
ENERGY STAR® qualified
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay® Transport Partner
EPSON T49H INK BOTTLE (140 ML)
Black Ink Bottle T49H100Cyan Ink Bottle T49H200
Magenta Ink Bottle T49H300
Yellow Ink Bottle T49H400
EXTENDED SERVICE PLANS
Additional 1-year Epson Preferred Plus Service EPPF500S1(Stackable up to 2 additional years)
|
|
|
