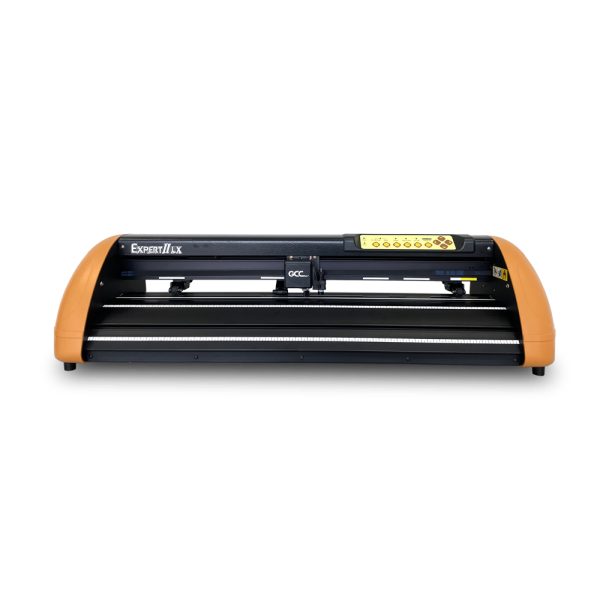

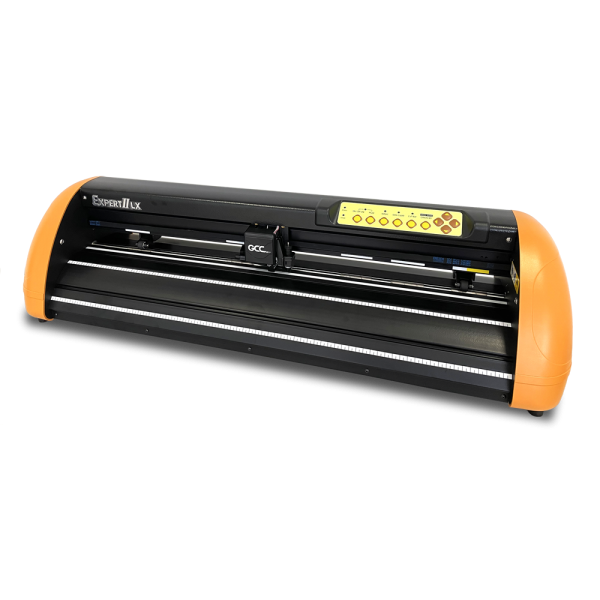

GCC EXPERT II LX VINYL CONTOUR CUTTER
Operational Method: Roller-Type
Max. Cutting Width: 600mm(23.6 in.)
Max. Cutting Length: 50m (164 ft.)
Max. Media Loading Width: 719 mm(28.3 in.)
Min. Media Loading Width: 50 mm(1.97 in.)
Acceptable Material Thickness: 0.8 mm (0.03 in.)
Number of Pinch Rollers: 3
Motor Drive: Stepper
Max. Cutting Force: 350g
Max. Cutting Speed (Diagonal): 705 mm/s(27.8 ips) (at 45° direction)
Offset: 0-1.0 mm (with an increase of 0.025 mm)
Mechanical Resolution: 0.012 mm (0.00047")
Software Resolution: 0.025 mm (0.00098")
Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterr
Repeatability: ±0.1mm
Memory Size: 1 MB /500 Kb (when using AAS)
Interfaces: USB 2.0 (High speed), Serial (RS-232C), Ethernet
Commands: HP-GL, HP-GL/2
Automatic-Aligning System: Available on Expert II LX models
Stand: Optional
Diameter of Blade: 2.5 mm
Dimension(H x W x D): 800 x 255 x 233 mm / 34.6 x 10 x 9.1 in.
Net Weight: 11 kg / 24.3 lb
Power Supply: AC 100-240V, 50~60 Hz (auto switching)
Power Consumption: Max. 65 W
Environment Humidity: 25%~ 75% relative humidity (operating)
Environment Temperature: 15°-30°C (60°-86°F)
